Electrostatic collector (homopolar distance is no less than 400mm) , we called wide space electrostatic collector. Compared with homopolar distance between 200mm～300mm, there are advantages of the high efficiency dust collect, low construction cost, cover small area etc. So it is widely used in engineering project.
BDC wide space lateral vibration electrostatic collector is used with C480 plate, wide space arrangement, rocker arm hammer shake de-dust and hit dusting collect with reliable structure, large vibration impulse force with perfect effect of dust cleaning.
Specification:BDC- m / n /x
B:plate
D:electrostatic dust collect
C:lateral vibration
m:electric field net sectional area
n:number of electric field
x:number of chamber(single or double)
Technical specification:
BDC-/3 type wide space single line dust collector:
| Specification Item | BDC -15/3 | BDC -20/3 | BDC -30/3 | BDC -45/3 | BDC -55/3 | BDC -67/3 | BDC -90/3 | BDC -108/3 |
| Air flow(10 thousand m³/h) | 3.9～ 5.6 | 5～ 7 | 6.7～ 11.2 | 11～16 | 14.3～20 | 17.8～24.4 | 21～32.4 | 27.2～36 |
| Electric field net sectional area(m²) | 15 | 20 | 30 | 45 | 55 | 67 | 90 | 108 |
| Number of electric field | 3 |
| Resistance loss(Pa) | ＜300 |
| Total dust collecting area(m²) | 620 | 950 | 1330 | 1960 | 3125 | 3739 | 4540 | 5324 |
| Outside size(m) L×W×H | 15.73 ×4.96 ×10.1 | 18.27 ×5.66 ×11.8 | 18.27 ×8.27 ×12.6 | 20.01 ×8.27 ×14.6 | 23.94 ×8.68 ×16.5 | 24.62 ×9.29 ×17.3 | 25.18 ×9.7 ×17.3 | 25.18 ×9.7 ×19.2 |
BDC-/4/2type wide space double line dust collector:
| Specification Item | BDC -15/4/2 | BDC -20/4/2 | BDC -30/4/2 | BDC -454/2 | BDC -55/4/2 | BDC -67/4/2 | BDC -90/4/2 | BDC -108/4/2 |
| Air flow(10 thousand m³/h) | 7.8～ 11.2 | 10～ 14 | 13.4～ 22.4 | 22～32 | 28.6～40 | 35.6～48.8 | 42～64.8 | 54.4～72 |
| Electric field net sectional area(m²) | 30 | 40 | 60 | 90 | 110 | 134 | 180 | 216 |
| Number of electric field | 4 |
| Resistance loss(Pa) | ＜360 |
| Total dust collecting area(m²) | 1240 | 1900 | 2660 | 3920 | 6250 | 7480 | 9080 | 10650 |
| Outside size(m) L×W×H | 20.3 ×9.92 ×10.1 | 23.68 ×11.32 ×11.8 | 23.68 ×16.54 ×12.6 | 26.0 ×16.54 ×14.6 | 26.0 ×17.36 ×16.5 | 32.15 ×18.58 ×17.3 | 32.8 ×19.4 ×17.3 | 32.18 ×19.4 ×19.2 |
product picture:
|
|

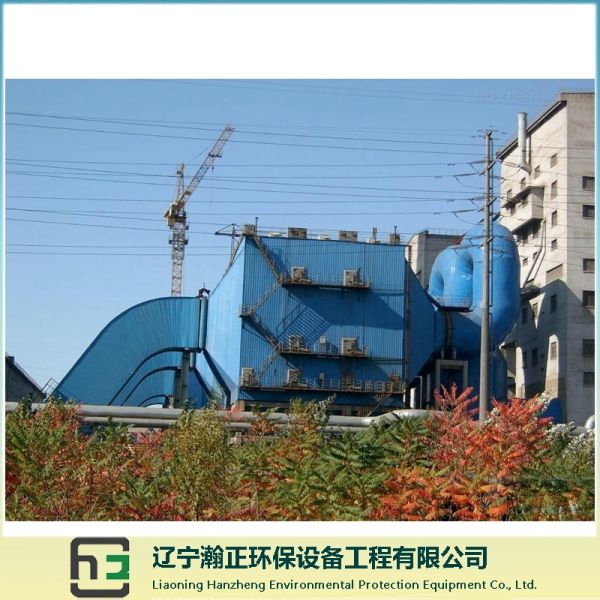

Wide spacing of lateral vibration electrical dust collector-D001 industrial dust collector for each size Images
|
